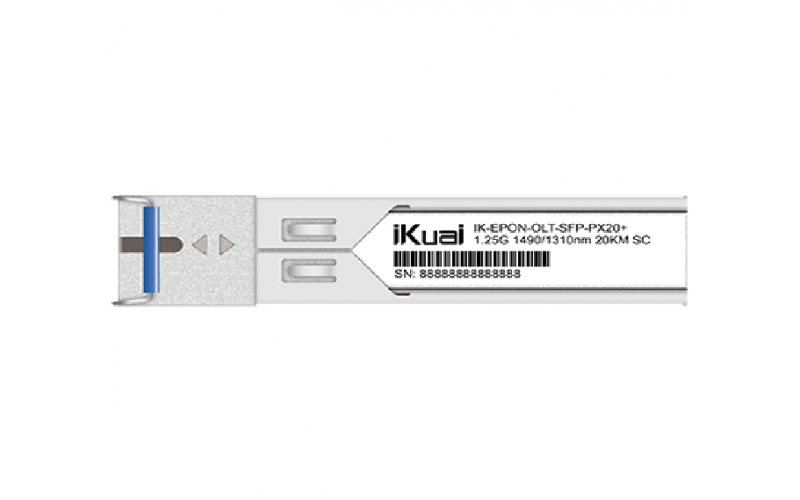

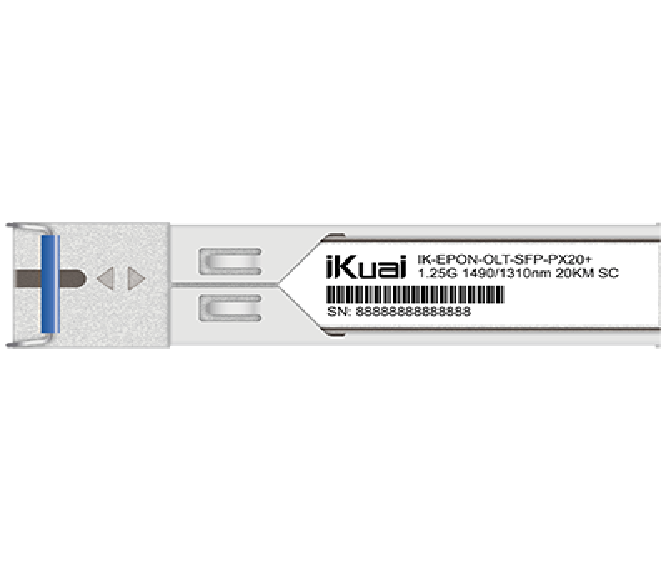

EPON OLT光模塊 IK-EPON-OLT-SFP-PX20+

￥ 0.00

數量

加入收藏加入購物車

具體參數

產品型號：IK-EPON-OLT-SFP-PX20+

協議標準：IEEE802.3ah

傳輸介質：單模光纖

傳輸距離：20km

傳輸速率：TX：1.25Gbps RX：1.25Gbps

端口類型：單纖SC

工作波長：TX：1490nm RX：1310nm

工作電壓：3.3V±0.17V

平均發射光功率：2-7dBm

接收靈敏度：-30dBm

DDM數字診斷：支持

殼體工作溫度：0~70℃

存儲溫度：-40~85℃
