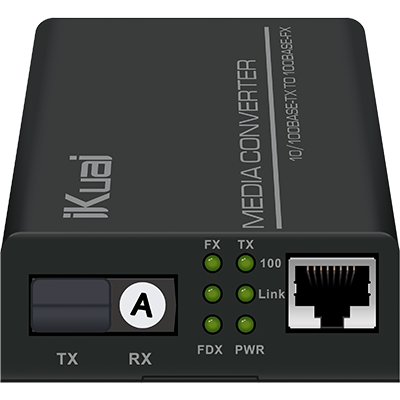

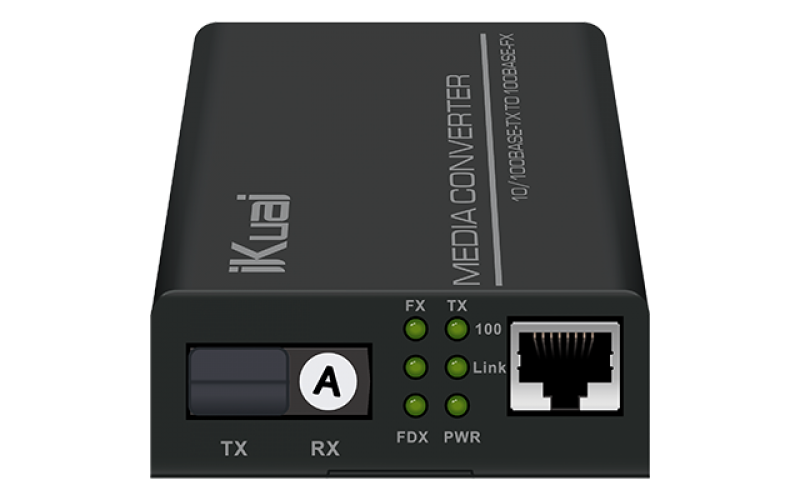

百兆光纖收發器 IK-SF210-20

￥ 0.00

數量

加入收藏加入購物車

具體參數

產品型號：IK-SF210-20

尺寸：94mm×70mm×26mm

重量：0.2kg/臺

DC供電：5V?1A

最大功耗：≤5W

傳輸速率：100Mbps

網絡接口：1個100Mbps SC光纖口 1個10/100Mbps RJ45網口

傳輸波長：TX：1310nm RX：1550nm

傳輸距離：≤20km

光纖介質：8/125、8.7/125、9/125、10/125um單模光纖

網線介質：超五類級以上UTP或STP網線

工作溫度：-20~50℃

工作濕度：10%～90%RH（無凝結）

存儲溫度：-40~70℃

存儲濕度：5%～90%RH（無凝結）
